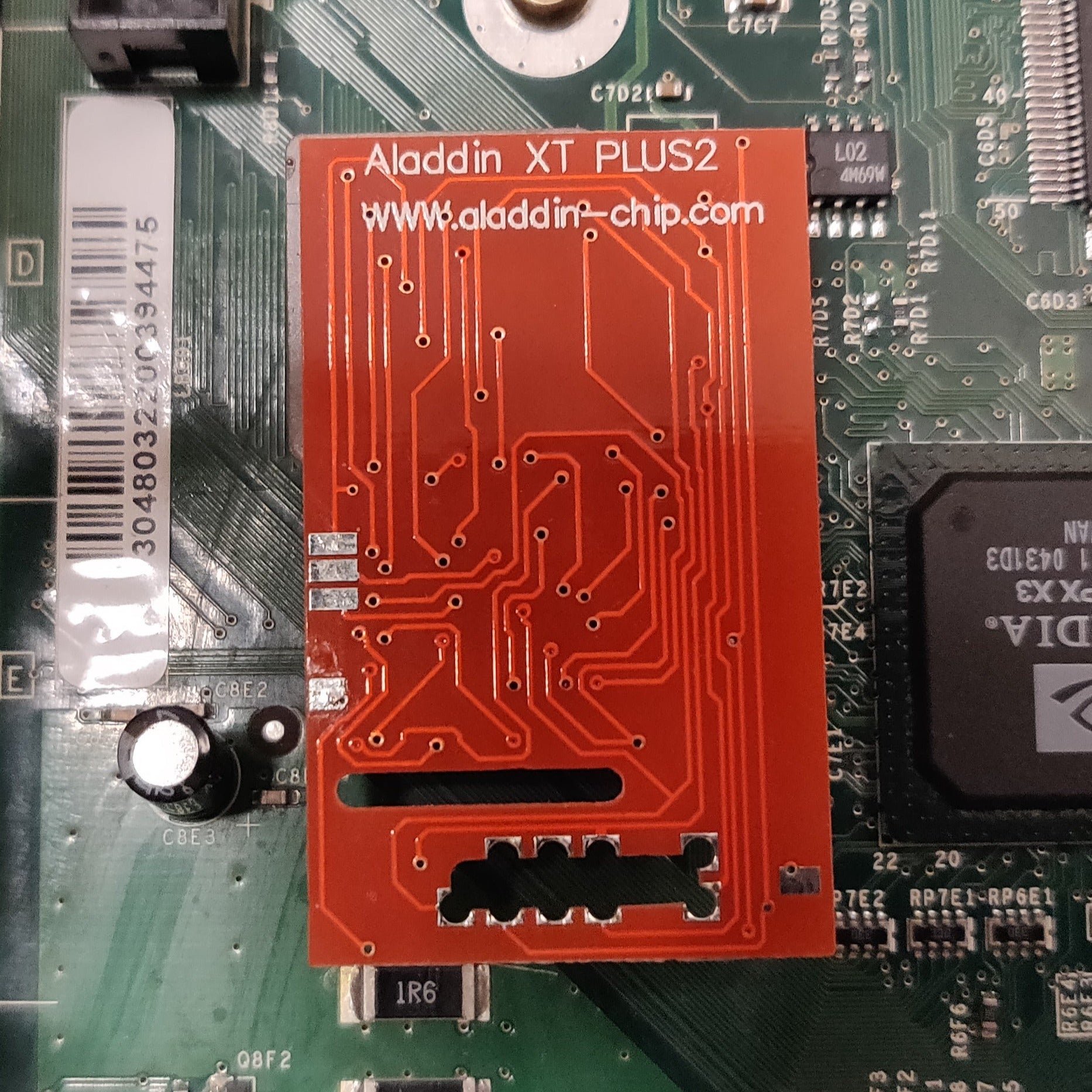

XBOX - Aladdin XT Plus 2 flashed with PrometheOS w/ 1mb CPLD chip

The current Aladdin modchips batches are coming with SST chips that are write protected, an upgraded Aladdin gives you a viable alternative to chips such as OpenXenium.

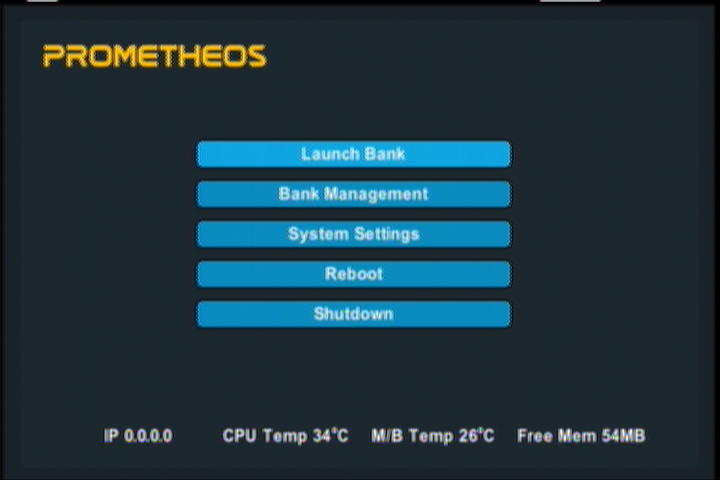

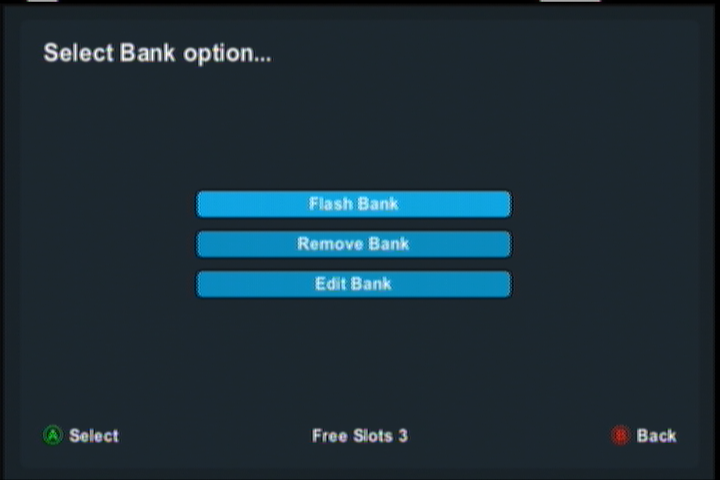

With an Aladdin equiped with PrometheOS you'll have access to 2 different boot options

• 1x 256kb bank
• The XBOX's onboard TSOP (Retail)

DISCLAIMERS / INSTALL

Each chip is tested before shipping. A 6x2 pin header is included in the kit

• For XBOX 1.0-1.5 :

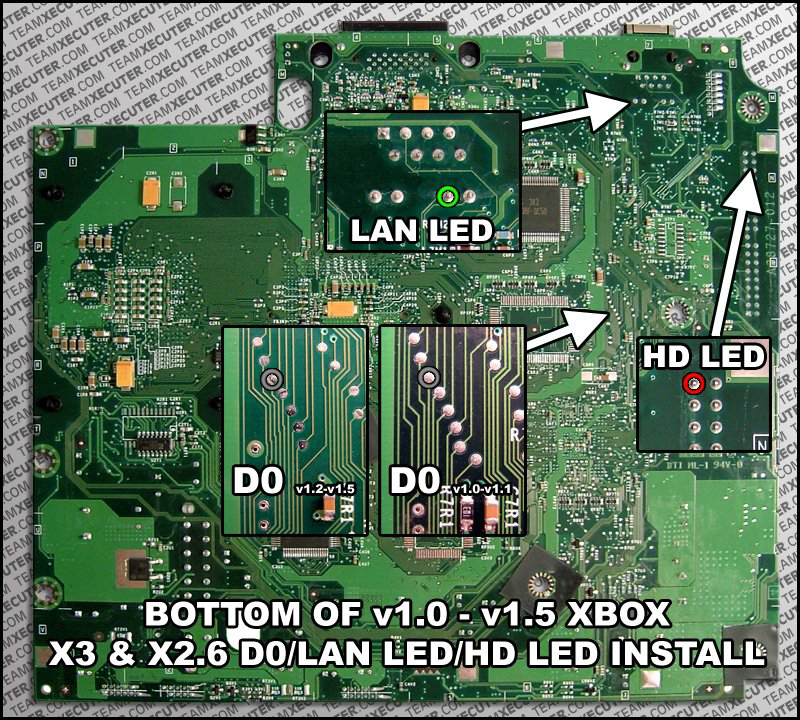

  • Simply install the chip as normal and tie D0 from the modchip to the D0 point on the Xbox.
    • If you wired D0 from the xbox to the D0 pad on the modchip and it's not working then just wire d0 on the xbox mainboard directly to any ground on the xbox.
  • DO NOT TIE BT TO GND, this is not needed for Aladdin.
• For XBOX 1.6 :

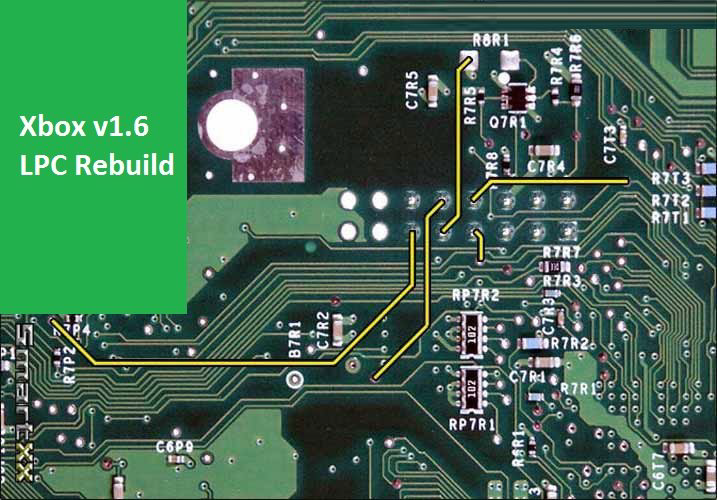

  • You need to rebuild the LPC port.
  • Then you can either :

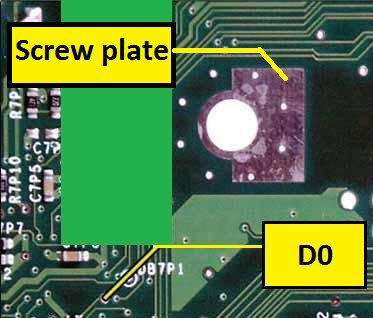

    • Connect D0 to ground.
    • Wire up lframe.
